For wet room installation only, which must be tanked with a sloping floor and adequate drainage.

Product to be installed in a corner only.

A hole in the floor of 200mm (8") diameter is required for the plumbing.

Plumber to supply, one hot and one cold feed pipe 15mm or 1/2" diameter size, up through the hole in the floor. And a 100mm or 4 " size toilet waste connection, up through the hole in the floor.

Ensure the room, finishes and wet-floor are finished and set /dry, prior to installing the Vertebrae.

Installation and commission time for the products should be around 3 hours, as all the above floor plumbing comes pre-fitted.

Plumber to fully check all the fixings and plumbing connections, and to commission the unit.

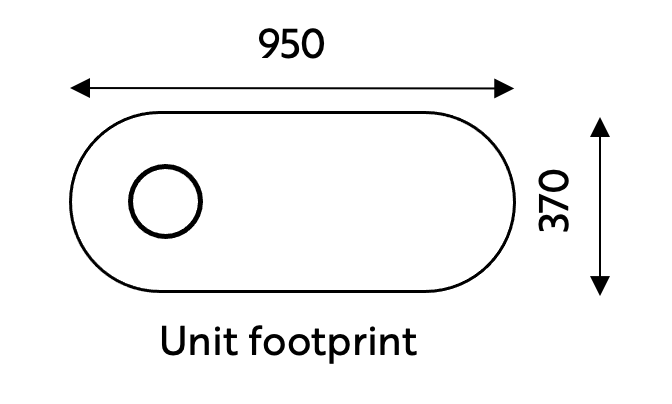

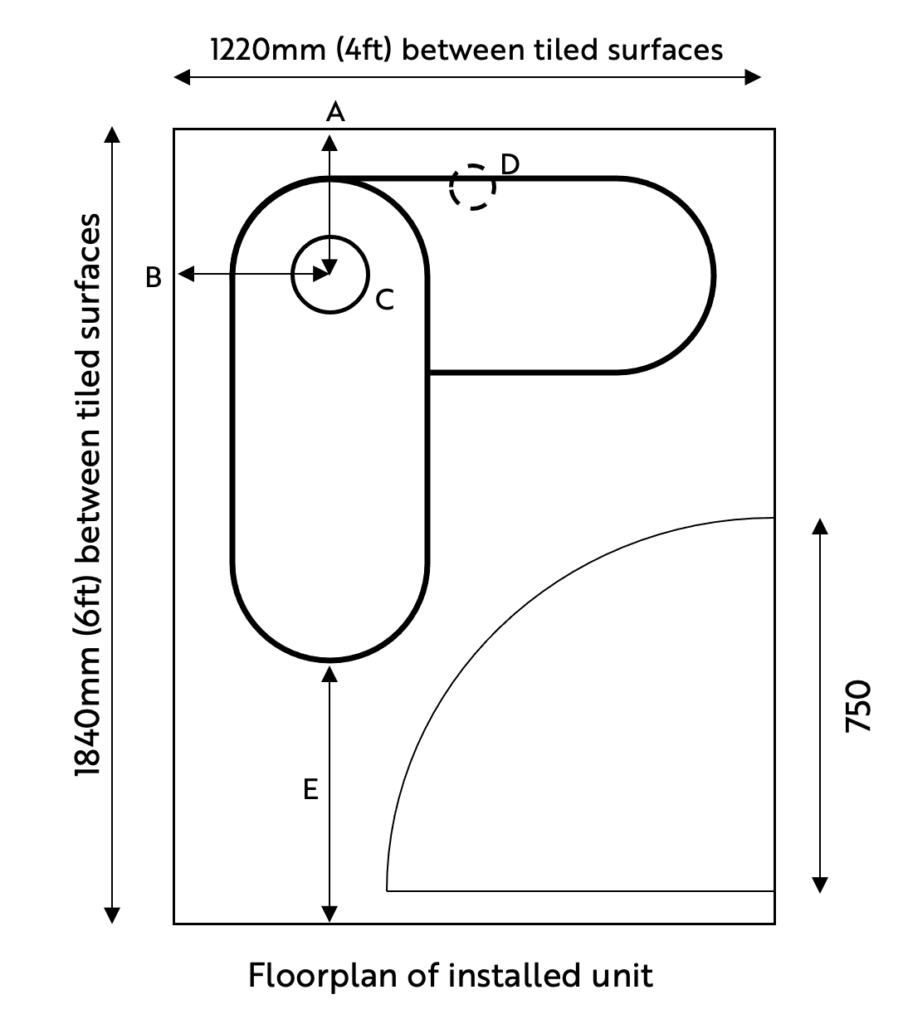

A: From wall 380mm

B: From wall 280mm

C: Hole diameter 200mm, for waste out, and hot/cold feeds in.

D: Drain for wet room floor

E: Recommended minimum 500mm.

Vertebrae Ltd reserve the right to change the product design and specification without notice.
